BROTHER DCP & MFC Series DCP-8110D, 8110DN, 8112DN, 8150DN, 8152DN, 8155DN, 8157DN, 8250DN MFC-8510DN, 8512DN, 8515DN, 8520DN, 8710DW, 8712DW, 8810DW, 8910DW, 8912DW, 8950DW, 8950DWT, 8952DW, 8952DWT

$11.00

Note: Up to 5 downloads only. Make sure to save your copy.

Compare

Description

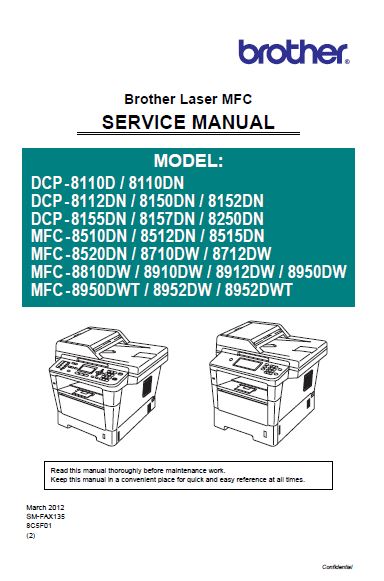

SERVICE MANUAL TABLE OF CONTENTS

REGULATION

SAFETY INFORMATION

CHAPTER 1 SPECIFICATIONS
1. SPECIFICATIONS LIST

CHAPTER 2 TROUBLESHOOTING
1. INTRODUCTION
2. OVERVIEW
3. ERROR INDICATION
4. TROUBLESHOOTING

CHAPTER 3 DISASSEMBLY/REASSEMBLY
1. SAFETY PRECAUTIONS
2. PACKING
3. SCREW CATALOGUE
4. SCREW TORQUE LIST
5. LUBRICATION
6. OVERVIEW OF GEARS
7. HARNESS ROUTING
8. DISASSEMBLY FLOW CHART
9. DISASSEMBLY PROCEDURE
10. DISASSEMBLY PROCEDURE
11. DISASSEMBLY PROCEDURE (LT UNIT)

CHAPTER 4 ADJUSTING AND UPDATING SETTINGS AS REQUIRED AFTER PARTS REPLACEMENT
1. IF YOU REPLACE THE MAIN PCB ASSY
2. IF YOU REPLACE THE LASER UNIT
3. IF YOU REPLACE THE LOW-VOLTAGE POWER SUPPLY PCB ASSY
4. IF YOU REPLACE THE HIGH-VOLTAGE POWER SUPPLY PCB ASSY
5. IF YOU REPLACE ANY PERIODIC REPLACEMENT PARTS
6. IF YOU REPLACE THE CONTROL PANEL ASSY OR TOUCH PANEL ASSY
7. IF YOU REPLACE THE DOCUMENT SCANNER UNIT, ADF UNIT (DUPLEX SCANNING MODEL), OR CIS UNIT

CHAPTER 5 SERVICE FUNCTIONS
1. MAINTENANCE MODE
2. OTHER SERVICE FUNCTIONS

CHAPTER 6 WIRING DIAGRAM
1. WIRING DIAGRAM

CHAPTER 7 PERIODICAL MAINTENANCE
1. SAFETY PRECAUTIONS
2. PERIODICAL REPLACEMENT PARTS

APPENDIX 1 SERIAL NUMBERING SYSTEM

APPENDIX 2 DELETING USER SETTING INFORMATION

APPENDIX 3 INSTALLING MAINTENANCE DRIVER

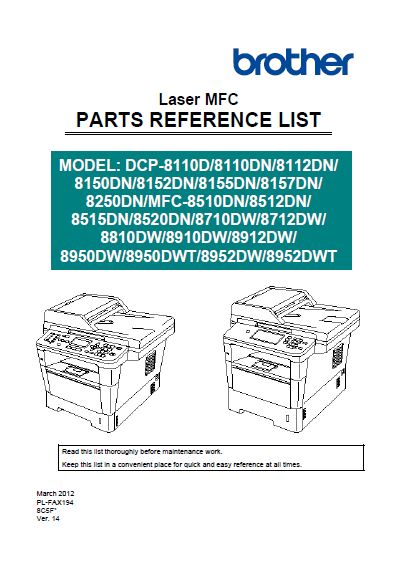

PARTS MANUAL TABLE OF CONTENTS

1. FRAME L & DRIVE UNIT
2. FRAME
3. LASER UNIT
4. PAPER FEEDER
5. DUPLEX
6. PAPER TRAY
7. FUSER UNIT
8. COVERS & LABELS
9. DOCUMENT SCANNER
10. ADF
11. PANEL
12. PCB
13. ACCESSORIES
14. PRINTED MATERIALS
15. PACKING MATERIALS
16. PERIODICAL MAINTENANCE PARTS
