BROTHER Color DCP-9020CDN, DCP-9020CDW, DCP-9340CDW, MFC-9130CW, MFC-9140CDN, MFC-9330CDW Fax/MFC – Service Manual

Home » Shop » BROTHER Color DCP-9020CDN, DCP-9020CDW, DCP-9340CDW, MFC-9130CW, MFC-9140CDN, MFC-9330CDW Fax/MFC – Service Manual

BROTHER Color DCP-9020CDN, DCP-9020CDW, DCP-9340CDW, MFC-9130CW, MFC-9140CDN, MFC-9330CDW Fax/MFC – Service Manual

$11.00

Note: Up to 5 downloads only. Make sure to save your copy.

Compare

Description

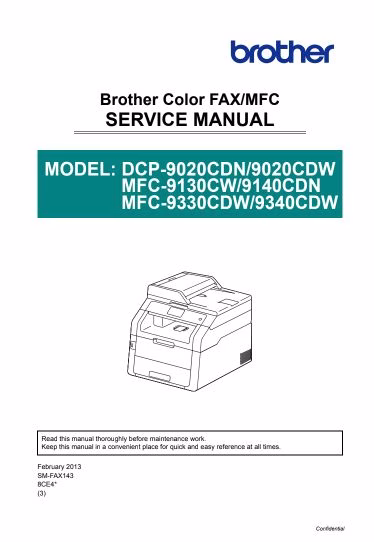

SERVICE MANUAL TABLE OF CONTENTS

REGULATION

SAFETY INFORMATION

CHAPTER 1 SPECIFICATIONS
1. SPECIFICATIONS LIST

CHAPTER 2 ERROR INDICATION AND TROUBLESHOOTING
1. INTRODUCTION
2. OVERVIEW
3. ERROR INDICATIONS
4. TROUBLESHOOTING

CHAPTER 3 DISASSEMBLY AND ASSEMBLY
1. SAFETY PRECAUTIONS
2. PACKING
3. SCREW CATALOGUE
4. SCREW TORQUE LIST
5. LUBRICATION
6. HARNESS ROUTING
7. DISASSEMBLY FLOW
8: DISASSEMBLY PROCEDURE

CHAPTER 4 ADJUSTMENTS AND UPDATING OF SETTINGS, REQUIRED AFTER PARTS REPLACEMENT
1. IF YOU REPLACE THE MAIN PCB ASSY
2. IF YOU REPLACE THE REGISTRATION MARK L PCB ASSY AND REGISTRATION MARK R PCB ASSY
3. IF YOU REPLACE THE LOW-VOLTAGE POWER SUPPLY PCB ASSY
4. IF YOU REPLACE THE PROCESS DRIVE UNIT
5. IF YOU REPLACE THE LED ASSY OR JOINT COVER ASSY
6. IF YOU REPLACE THE DOCUMENT SCANNER UNIT, ADF UNIT (DUPLEX SCANNING MODEL ONLY) OR CIS UNIT
7. IF YOU REPLACE THE CONTROL PANEL ASSY OR TOUCH PANEL ASSY
8. IF YOU REPLACE THE FUSER UNIT/PK KIT1

CHAPTER 5 SERVICE FUNCTIONS
1. MAINTENANCE MODE
2. OTHER SERVICE FUNCTIONS

CHAPTER 6 WIRING DIAGRAM
1. WIRING DIAGRAM

CHAPTER 7 PERIODICAL MAINTENANCE
1. PRECAUTIONS
2. PERIODICAL REPLACEMENT PARTS

APPENDIX 1 SERIAL NUMBERING SYSTEM

APPENDIX 2 DELETION OF USER SETTING INFORMATION, ETC.

APPENDIX 3 INSTALLING THE MAINTENANCE PRINTER DRIVER

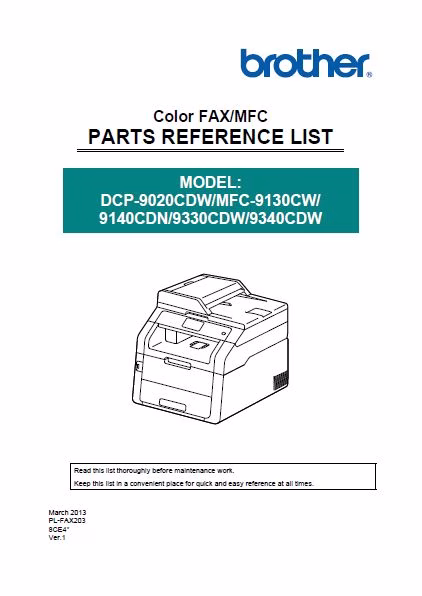

PARTS MANUAL TABLE OF CONTENTS

1. FRAME L & DRIVE UNIT
2. FRAME R UNIT
3. FRAME
4. LED JOINT COVER
5. PAPER FEEDER
6. DUPLEX
7. PAPER TRAY
8. FUSER UNIT
9. PAPER EJECT
10. COVERS & LABELS
11. DOCUMENT SCANNER
12. ADF
13. PANEL
14. PCB
15. ACCESSORIES
16. PRINTED MATERIALS
17. PACKING MATERIALS
18. PERIODICAL MAINTENANCE PARTS
