BROTHER Laser Printer Service Manual

Home » Shop » BROTHER Laser Printer Service Manual

BROTHER Laser Printer Service Manual

$9.00

Note: Up to 5 downloads only. Make sure to save your copy.

Compare

Description

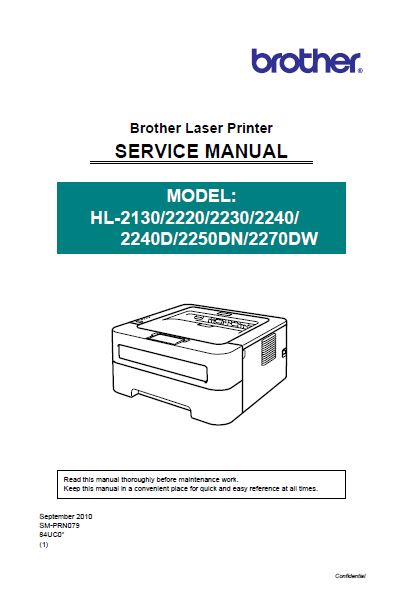

SERVICE MANUAL TABLE OF CONTENTS

REGULATION

SAFETY INFORMATION

CHAPTER 1 SPECIFICATIONS
1. SPECIFICATIONS LIST

CHAPTER 2 TROUBLESHOOTING
1. INTRODUCTION
2. OVERVIEW
3. LED ERROR INDICATION AND FAILURES
4. ERROR SYMPTOM/ERROR CAUSE AND REMEDY

CHAPTER 3 DISASSEMBLY AND ASSEMBLY
1. SAFETY PRECAUTIONS
2. PACKING
3. SCREW CATALOGUE
4. SCREW TORQUE LIST
5. LUBRICATION
6. OVERVIEW OF GEARS
7. HARNESS ROUTING
8. DISASSEMBLY FLOW CHART
9. DISASSEMBLY PROCEDURE

CHAPTER 4 ADJUSTMENTS AND UPDATING OF SETTINGS, REQUIRED AFTER PARTS REPLACEMENT
1. IF YOU REPLACE THE MAIN PCB
2. IF YOU REPLACE THE LASER UNIT
3. IF THE IRREGULAR POWER SUPPLY DETECTION ERROR IS DETECTED AND THE LOW VOLTAGE POWER SUPPLY PCB ASSY IS REPLACED

CHAPTER 5 SERVICE FUNCTIONS
1. MAINTENANCE MODE
2. PRINTER SETTINGS
3. OTHER SERVICE FUNCTIONS

CHAPTER 6 CIRCUIT DIAGRAMS, WIRING DIAGRAM

CHAPTER 7 PERIODICAL MAINTENANCE
1. PERIODICAL REPLACEMENT PARTS

APPENDIX 1 SERIAL NUMBERING SYSTEM

APPENDIX 2 DELETION OF USER SETTING INFORMATION

APPENDIX 3 INSTALLING THE MAINTENANCE PRINTER DRIVER

APPENDIX 4 HOW TO MAKE PROTECTIVE MATERIAL OF DRUM UNIT

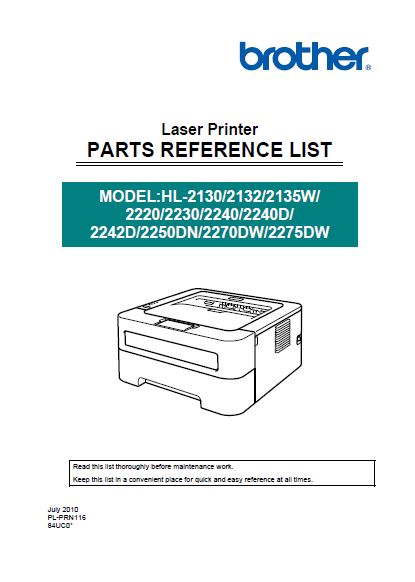

PARTS MANUAL TABLE OF CONTENTS

1. FRAME L & DRIVE UNIT
2. PAPER FEEDER
3. FRAME
4. LASER UNIT
5. DX
6. PAPER CASSETTE
7. FUSER UNIT
8. COVERS & LABELS
9. MAIN PCB
10. LVPS
11. HVPS
12. AC CORDS
13. ACCESSORIES
14. PACKING MATERIALS
15. PERIODICAL MAINTENANCE
