Description

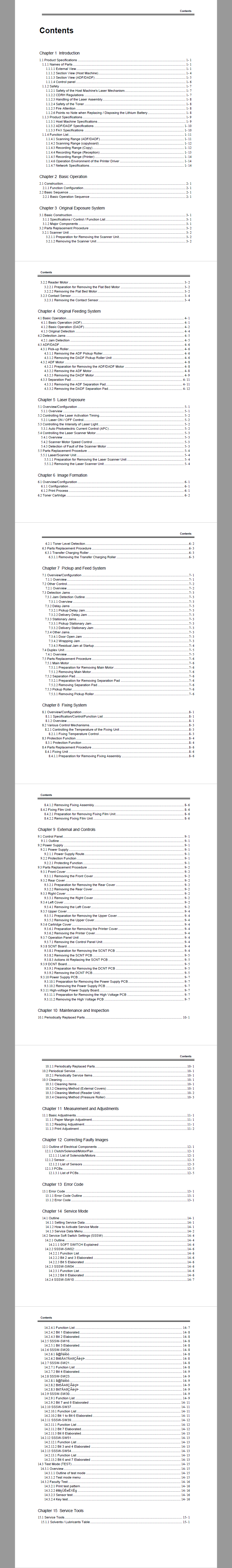

Service Manual Table of Contents
Chapter 1 Introduction
1.1 Product Specifications
Chapter 2 Basic Operation
2.1 Construction
2.2 Basic Sequence
Chapter 3 Original Exposure System
3.1 Basic Construction
3.2 Parts Replacement Procedure
Chapter 4 Original Feeding System
4.1 Basic Operation
4.2 Detection Jams
4.3 ADF/DADF
Chapter 5 Laser Exposure
5.1 Overview/Configuration
5.2 Controlling the Laser Activation Timing
5.3 Controlling the Intensity of Laser Light
5.4 Controlling the Laser Scanner Motor
5.5 Parts Replacement Procedure
Chapter 6 Image Formation
6.1 Overview/Configuration
6.2 Driving and Controlling the High-Voltage System
6.3 Toner Cartridge
6.4 Parts Replacement Procedure
Chapter 7 Pickup and Feed System
7.1 Overview/Configuration
7.2 Other Control
7.3 Detection Jams
7.4 Duplex Unit
7.5 Parts Replacement Procedure
Chapter 8 Fixing System
8.1 Overview/Configuration
8.2 Various Control Mechanisms
8.3 Protection Function
8.4 Parts Replacement Procedure
Chapter 9 External and Controls
9.1 Control Panel
9.2 Power Supply
9.3 Parts Replacement Procedure
Chapter 10 Maintenance and Inspection
10.1 Periodically Replaced Parts
10.2 Periodical Service
10.3 Cleaning
Chapter 11 Measurement and Adjustments
11.1 Basic Adjustments
Chapter 12 Correcting Faulty Images
12.1 Outline of Electrical Components
Chapter 13 Error Code
13.1 Error Code
Chapter 14 Service Mode
14.1 Outline
14.2 Service Soft Switch Settings (SSSW)
14.3 Test Mode (TEST)
Chapter 15 Service Tools
15.1 Service Tools
Parts Manual Table of Contents

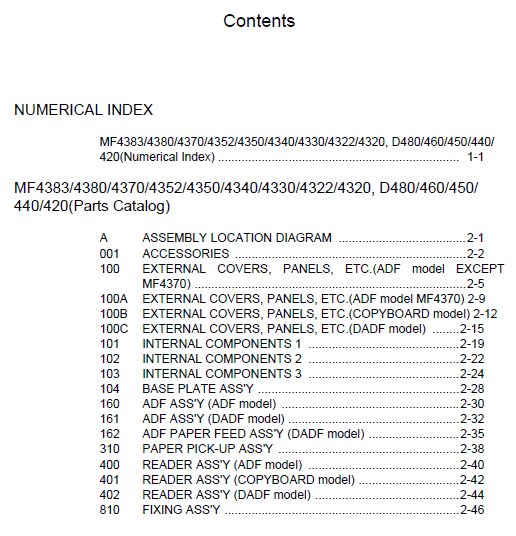

MF4383/4380/4370/4352/4350/4340/4330/4322/4320, D480/460/450/440/420(Parts Catalog)
imageCLASS MF4383dn
230V KR F15-6667-000 ETC DADF/FAX model
imageCLASS MF4380dn
120V US F15-6631-000 EJW DADF/FAX model
120V CA,LTN F15-6631-000 EJY DADF/FAX model
230V ASIA F15-6641-000 EKE DADF/FAX model
230V KR F15-6661-000 ERY DADF/FAX model
230V AU F15-6681-000 EKF DADF/FAX model
imageCLASS MF4370dn
120V TW F15-6622-000 EKV ADF/FAX model
120V US F15-6632-000 EKH ADF/FAX model
120V CA,LTN F15-6632-000 EKJ ADF/FAX model
230V ASIA F15-6642-000 EKQ ADF/FAX model
230V CN F15-6652-000 EKT ADF/FAX model
imageCLASS MF4352d
230V KR F15-6662-000 EKU ADF/FAX model
230V AU F15-6682-000 EKR ADF/FAX model
230V KR F15-6668-000 ESU ADF/FAX model
imageCLASS MF4350d
120V TW F15-6623-000 ELN ADF/FAX model
120V US F15-6633-000 EKW ADF/FAX model
120V CA,LTN F15-6633-000 EKX ADF/FAX model
230V ASIA F15-6643-000 ELD ADF/FAX model
230V CN F15-6653-000 ELJ ADF/FAX model
230V KR F15-6663-000 ELK ADF/FAX model
230V AU F15-6683-000 ELE ADF/FAX model
imageCLASS MF4340d
230V KR F15-6664-000 EMB COPYBOARD/FAX model
230V AU F15-6684-000 EMA COPYBOARD/FAX model
imageCLASS MF4330d
230V ASIA F15-6645-000 EMN ADF model
230V CN F15-6655-000 EMP ADF model
230V KR F15-6665-000 ERX ADF model
imageCLASS MF4322d
230V CN F15-6656-000 EMV COPYBOARD model
imageCLASS MF4320d
230V ASIA F15-6646-000 EMT COPYBOARD model
230V CN F15-6658-000 EMW COPYBOARD model
230V KR F15-6666-000 ERW COPYBOARD model
i-SENSYS MF4380dn
230V EUR1 F15-6691-000 EJZ DADF/FAX model
230V EUR2 F15-6691-000 EKA DADF/FAX model
230V EUR3 F15-6691-000 EKD DADF/FAX model
i-SENSYS MF4370dn
230V EUR1 F15-6692-000 EKK ADF/FAX model
230V EUR2 F15-6692-000 EKN ADF/FAX model
230V EUR3 F15-6692-000 EKP ADF/FAX model
i-SENSYS MF4350d
230V EUR1 F15-6693-000 EKZ ADF/FAX model
230V EUR2 F15-6693-000 ELA ADF/FAX model
230V EUR3 F15-6693-000 ELC ADF/FAX model
i-SENSYS MF4340d
230V EUR1 F15-6694-000 ELU COPYBOARD/FAX model
230V EUR2 F15-6694-000 ELX COPYBOARD/FAX model
230V EUR3 F15-6694-000 ELZ COPYBOARD/FAX model
i-SENSYS MF4330d
230V EUR1 F15-6695-000 EMF ADF model
230V EUR2 F15-6695-000 EML ADF model
i-SENSYS MF4320d
230V EUR1 F15-6696-000 EMQ COPYBOARD model
230V EUR2 F15-6696-000 EMS COPYBOARD model
Satera MF4380dn
100V JP F15-6611-000 EKG DADF/FAX model
Satera MF4370dn
100V JP F15-6612-000 EKS ADF/FAX model
Satera MF4350d
100V JP F15-6613-000 ELF ADF/FAX model
Satera MF4330d
100V JP F15-6615-000 EMD ADF model
imageCLASS D480
120V US F15-6931-000 DTG DADF/FAX model
120V CA F15-6931-000 DTJ DADF/FAX model
imageCLASS D460
120V US F15-6932-000 DTK DADF model
120V CA F15-6932-000 DTM DADF model
imageCLASS D440
120V US F15-6934-000 DTQ ADF model
120V CA F15-6934-000 DTR ADF model
imageCLASS D420
120V US F15-6935-000 DTS COPYBOARD model
120V CA F15-6935-000 DTT COPYBOARD model
i-SENSYS D450d
230V EUR1 F15-6993-000 DTN DADF model
Satera D450d
230V EUR2 F15-
